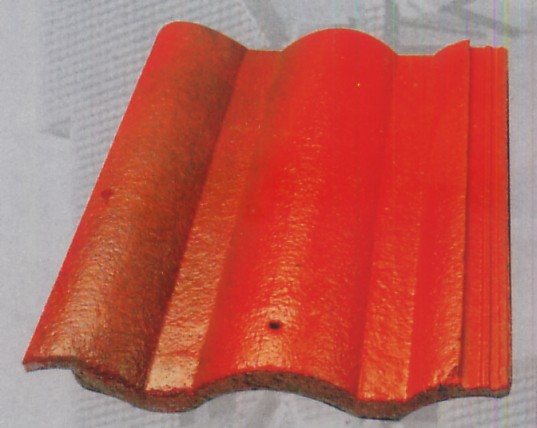

ASC Heritage Roofing Tile

ASC Heritage Roof tiles combines beauty and cost effective solution to both Malaysian home owners and commercial projects developers. With its interlocking capability, tiles can be fitted onto high/low pitch on multi-level roofing. ASC Heritage Roof tiles are manufactured to highest quality to ensure its tiles are able to withstand to the harsh tropical climate in Malaysia.

Product Data

Construction Extruded concrete interlocking roofing tile with fused or integral colour and clear sealer coat
Application Roof and wall covering in pitch range 12.5° - 90 °
Composition Portland cement, graded aggregates, iron oxide coloring, various performance enhancing additives and clear finishing coat
Dimension 438mm x 330mm
Weight 4.8 kg (approx.)
Fire Rating Rated incombustible
Water Absorption < 10% water by weight
Strength Transverse breaking load strength >= 1133N
Tile/㎡ (Nominal 75mm head lap) 9.5 pcs
Batten Spacing 362 mm c/c maximum for 75mm head lap

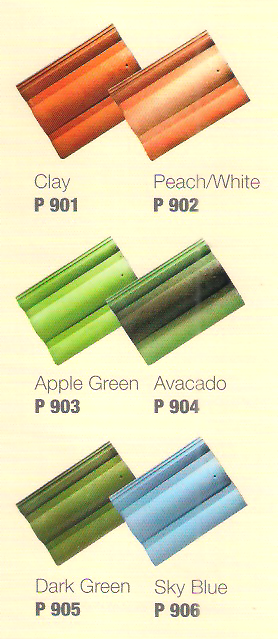

Color Chart

The colours shown here are reproduced as close to the original as display technology allows. For best accuracy on the colour selection,refer to the actual tile.

Fittings
