Weng Wai Trading Sdn Bhd

Roofing building materials supplier

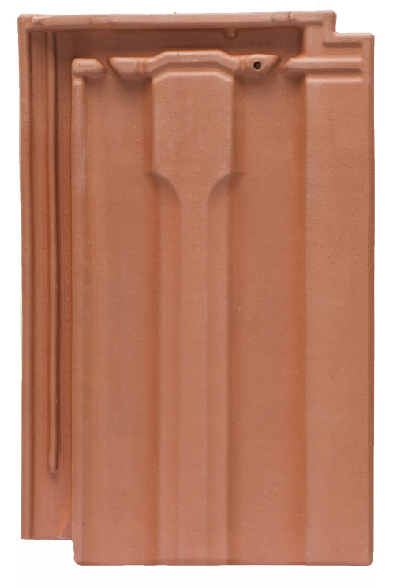

BMI GCI Marseille 12(Clay Roofing)

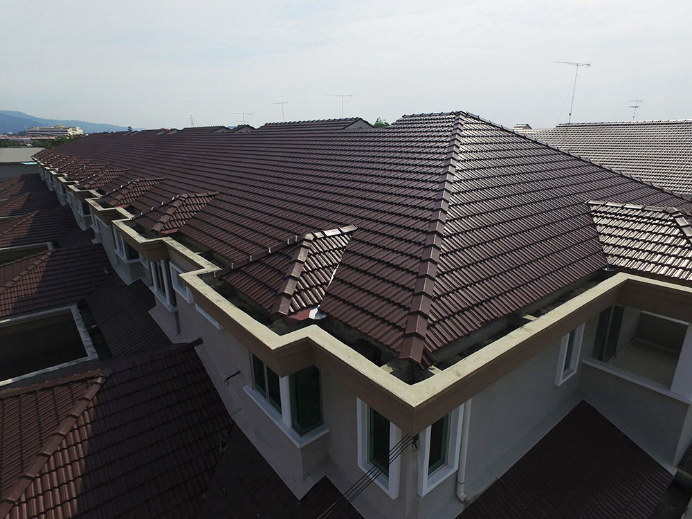

Marseille, a classic profile that never goes out of style. Marseille's double-valley shape recreates a distinctive Mediterranean look.

Marseille - Satin Brown

Features

Product Data

Overall Dimension 270mm(W) x 440mm(L)
Roof Pitch 20° - 29.9° 30° above
Batten Spacing 315mm - 365mm 315mm - 375mm
Coverage 11.6 - 13.8 pcs/㎡
(12 pcs/㎡ based on 360mm batten spacing)
Unit Weight approx. 4.1kg/pc
Minimum Pitch 20° - 29.9° 20° and above
Layering pattern Cross Bond Only Cross/Straight Bond

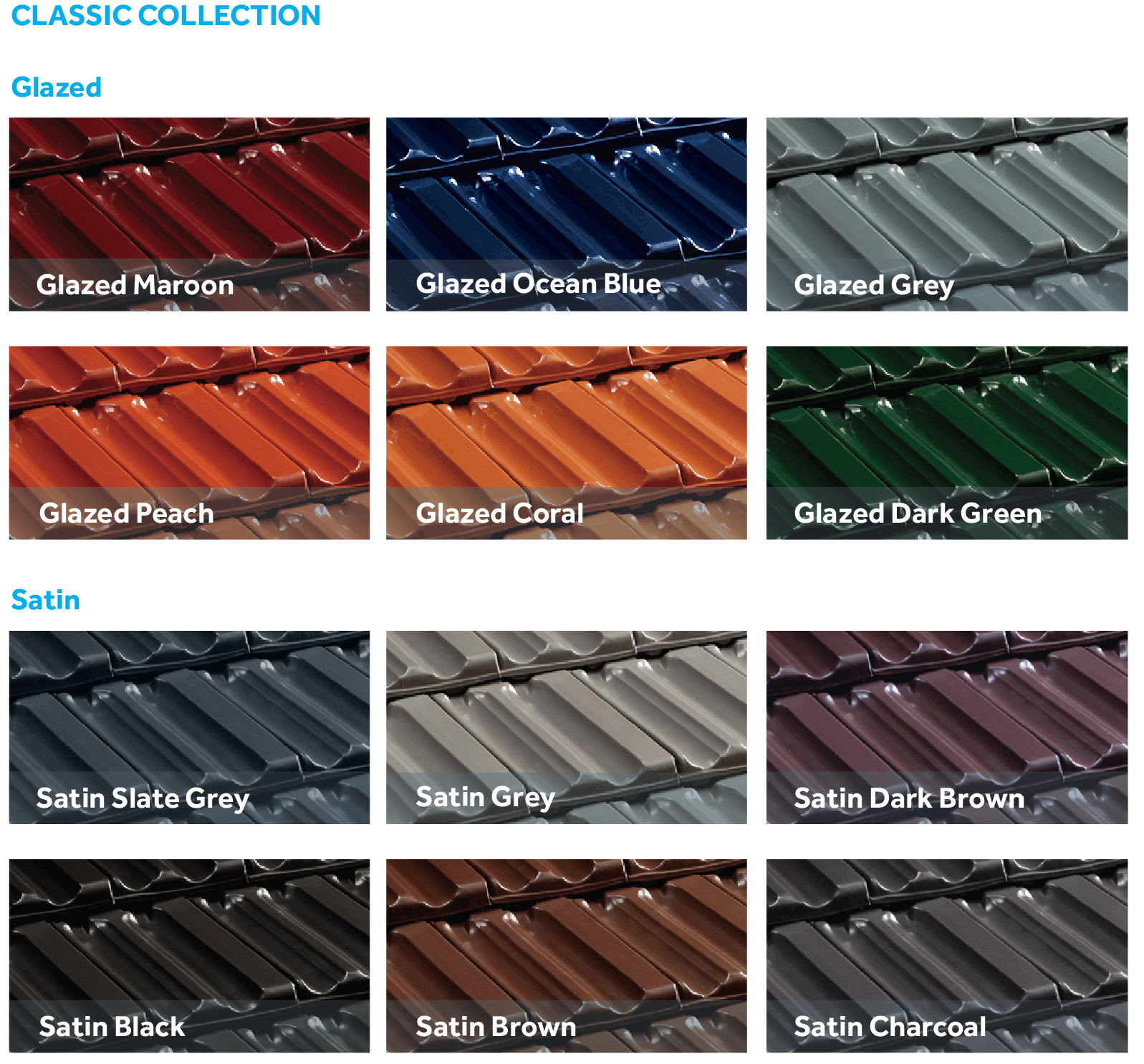

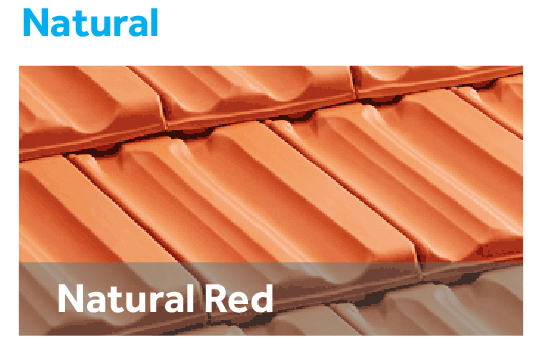

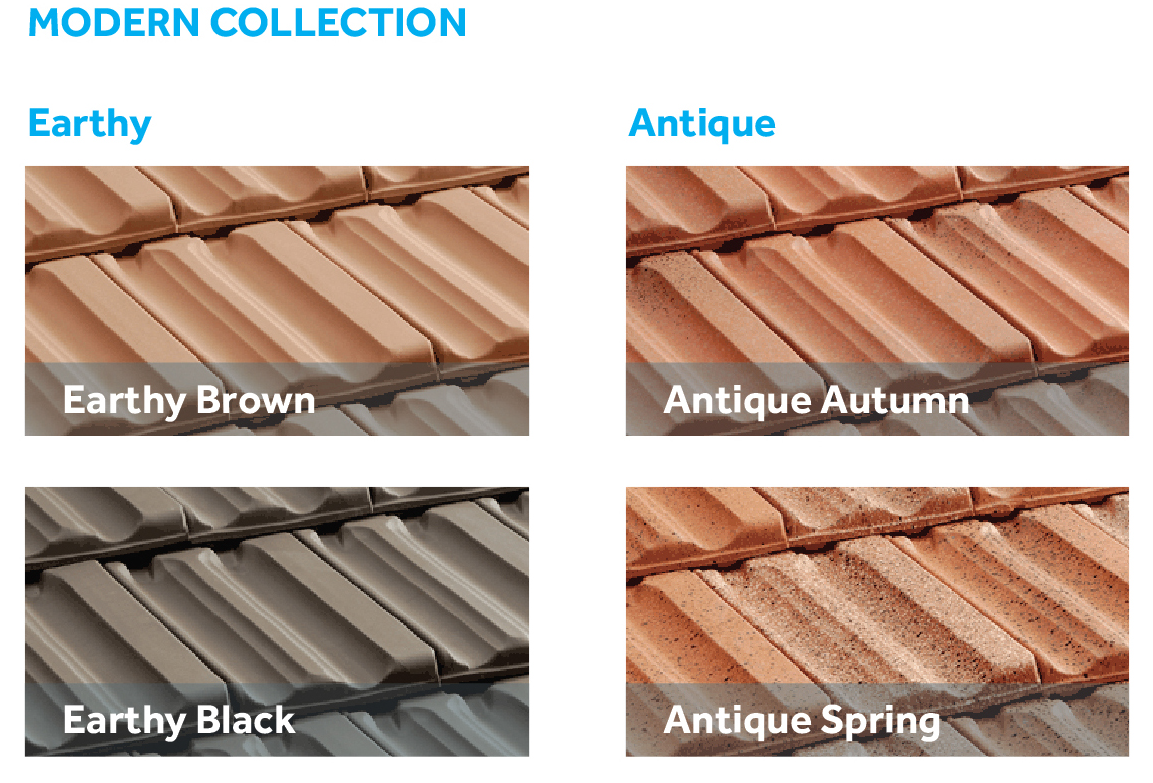

The colours shown here are reproduced as close to the original as display technology allows. For best accuracy on the colour selection,refer to the actual tile.

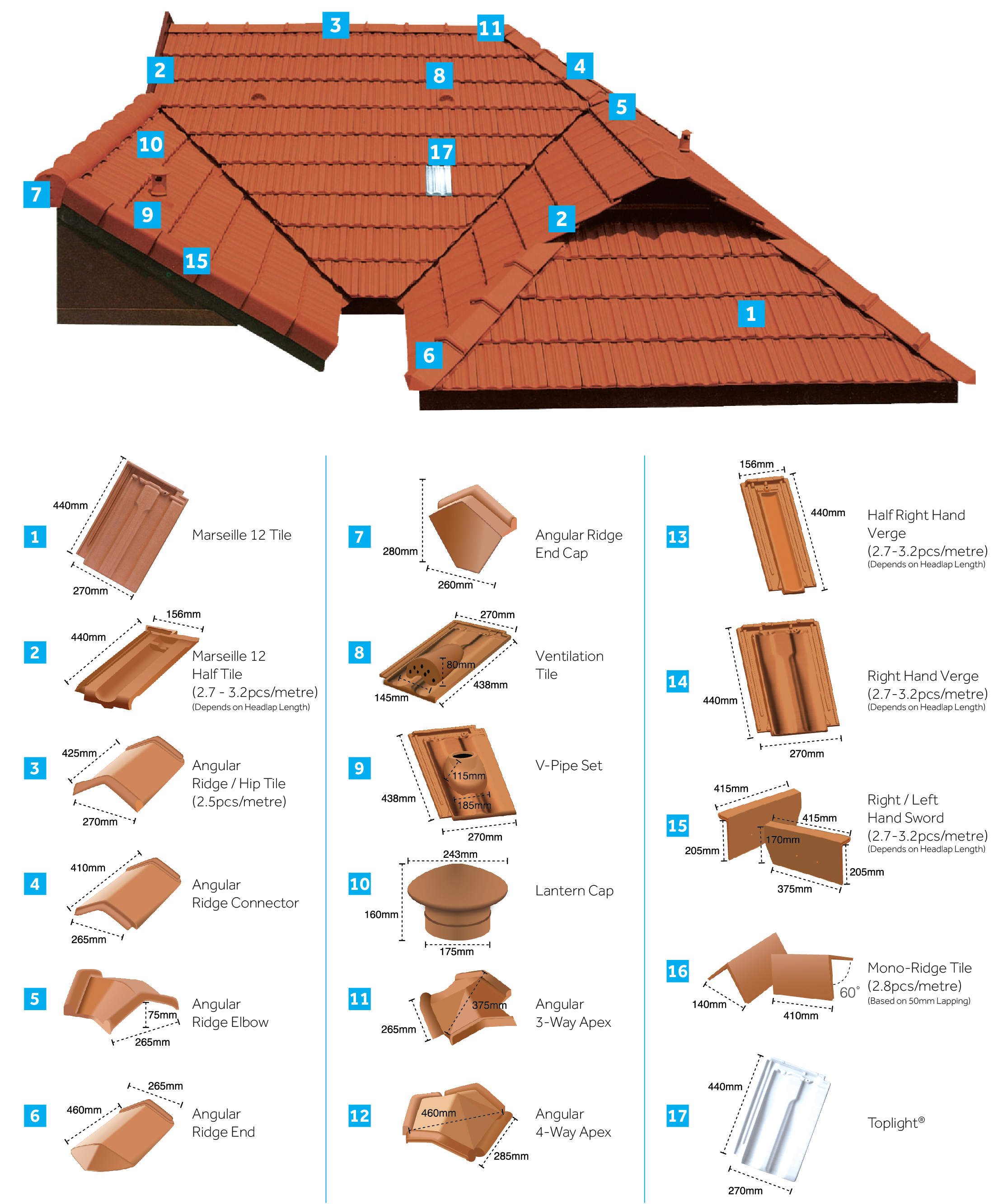

    BMI Marseille 12 Fittings

For more information on BMI Monier Roofing Accesories
For more information on BMI Roof Heat Insulation
